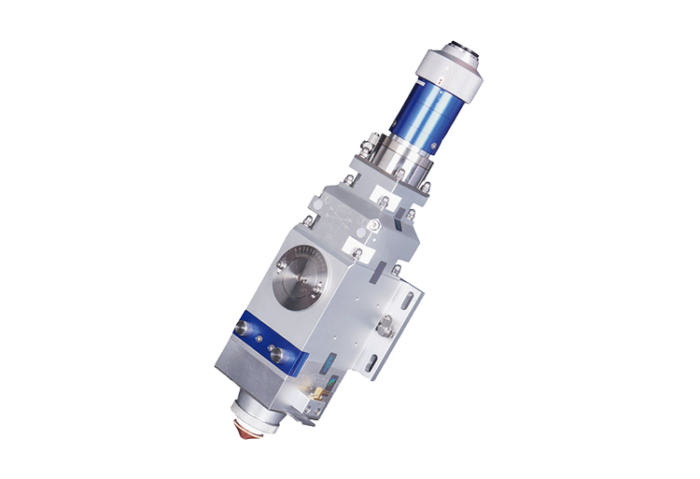

WSX KC15 0-2kW Manual Focus Fiber Laser Cutting Head

WSX KC15A

This cutting head has strong advantages in medium-power large-format laser cutting applications. The internal structure of the laser head is completely sealed to prevent the optical components from being contaminated by dust. The laser head features two-point centering adjustment, and the focusing is driven by an imported electric motor, significantly improving efficiency during perforation. The protective lens adopts a drawer-type structure, making replacement convenient. It can be equipped with various lasers with QBH connectors. It includes indicator lights for displaying fault alarms, collimation alarms, pressure alarms, and lower protective lens alarms.

Send Request

Product Features

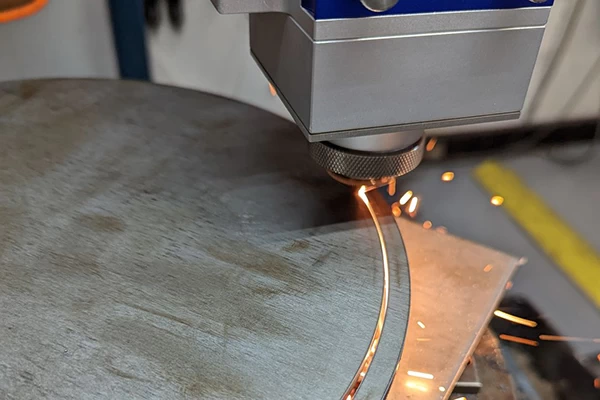

This cutting head has a strong advantage in the application of medium power large format fiber laser cutting.
The internal structure of the laser head is completely sealed to avoid dust contamination on the optical part.
This laser head adopts two-point alignment, and the focusing is adjusted by cam structure accurately and conveniently.
The protective window is installed in cartridge, and is convenient to replace.
Can be equipped with various kinds of laser source with QBH connector.

Technical Data

Model	WSX KC15A
Applicable Power	≤2000W
Fiber Interface	QBH
Max Gas Pressure	25Bar
Collimating Focal Length	F75 / F100
Focusing Focal Length	F125 / F150 / F190
Horizontal Adjustment Rang	±1.5mm
Vertical Adjustment Rang	±5mm
Effective Aperture	25mm
Gross Weight	3.5kg
