2D Cutting Head
BLT3 / BLT4 / BLT6 / BLT8 / BLT9 / BLTF / BLTA Series
BOCHU BOCI 2D Cutting Heads cover a wide power range from 4kW to 120kW, including the BLT3, BLT4, BLT6, BLT8, BLT9, BLTF, and BLTA Series. Designed for high-performance sheet metal processing, these cutting heads offer fast autofocus response, stable beam delivery, and excellent cutting consistency. With optimized structure and seamless integration with BOCHU systems, the BOCI 2D series ensures reliable operation, high efficiency, and precise cutting results across various industrial applications.

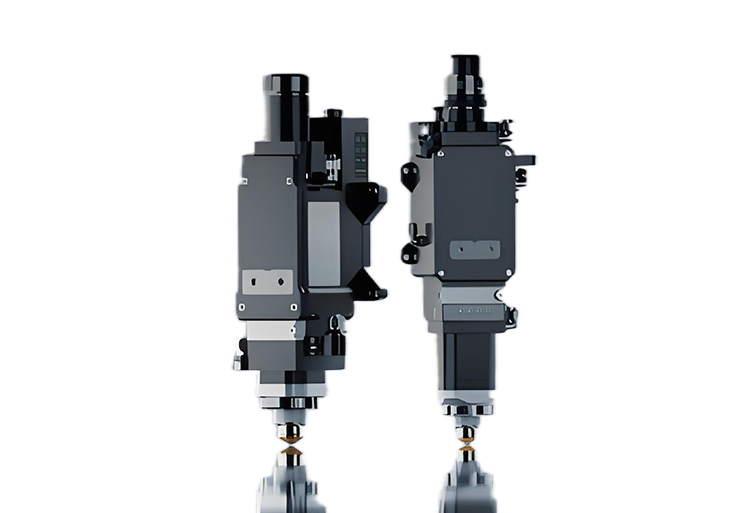

BOCI BLT4 Series
BOCI BLT6 Series
Product Features
Application Range
Product Specifications
| Model | Power Rating | Fiber Interface | Focal Length (mm) | Collimation Length(mm) | Auto Focus Range (mm) | Remark |
|---|---|---|---|---|---|---|
| BLT310 | 4 kW | QBH, EOC | 150 / 200 | 100 | -19mm~+25mm (F150) / -40mm~+40mm (F200) | Fast Focusing, Collision Protection |
| BLT421S | 8 k W | QBH, EOC | 150 / 200 | 100 | -25mm~+22mm (F150) / -50mm~+35mm (F200) | Fast Focusing, Collision Protection |
| BLT442 | 15 k W | Q+, QD, QBH, ADD | 200 | 100 | -45mm~+50mm | Fast Focusing, Collision Protection |
| BLT462 | 20 k W | Q+, QD, QBH, ADD | 200 | 100 | -45mm~+50mm | Fast Focusing, Collision Protection |
| BLT482 | 30 k W | Q+, QBH, ADD | 200 / 300 | 100 | -45mm~+50mm (F200) / -100mm~+50mm (F300) | Fast Focusing, Collision Protection |
| BLT4102 | 40 kW | Q+, ADD | 300 | 100 | -100mm~+50mm | Fast Focusing, Collision Protection |
| BLT4122 | 60 kW | Q+, ADD | 300 | 100 | -50mm~+50mm | Fast Focusing, Collision Protection |
| BLT643H | 15 kW | Q+, QD, QBH, ADD | 200 | 100 | -50mm~+40mm | Smart Frame, Collision Protective Plate |
| BLT663H | 20 kW | Q+, QD, QBH, ADD | 200 | 100 | -50mm~+40mm | Smart Frame, Collision Protective Plate |
| BLT683H | 30 kW | Q+, ADD | 200 / 300 | 100 | -50mm~+40mm (F200) / -100mm~+50mm (F300) | Smart Frame, Collision Protective Plate |
| BLT6103H | 40 kW | Q+, ADD | 300 | 100 | -100mm~+50mm | Smart Frame, Collision Protective Plate |
| BLT840H | 15 kW | Q+, QD, QBH, ADD | 200 | 100 | -50mm~+50mm | Variable Beam Shape, Smart LaserOff |
| BLT860H | 20 kW | Q+, QD, QBH, ADD | 200 / 300 | 100 | -50mm~+50mm | Variable Beam Shape, Smart LaserOff |
| BLT980MA | 30 kW | Q+, ADD | 200 / 350 | 100 | -40mm~35mm (F200) / -190mm~+60mm (F350) | Auto Centering, Cutting Path Monitoring |
| BLT9100MA | 40 kW | Q+, ADD | 200 / 400 | 100 | -50mm~+45mm (F200) / -200mm~+70mm (F400) | Auto Centering, Cutting Path Monitoring |
| BLT9120MA | 60 kW | Q+, ADD | 250 / 450 | 100 | -70mm~+50mm (F250) / -200mm~+75mm (F450) | Auto Centering, Cutting Path Monitoring |
| BLTF20 | 8 kW | EOC, QBH, QD, Q+ | 300 | 100 | -100mm~+50mm | Dual-Mode Cutting, Auto Ignition |
| BLTF60 | 20 kW | Q+, QD, QBH, ADD | 250 / 300 | 100 | -70mm~+50mm (F250) / -100~+50mm (F300) | Dual-Mode Cutting, Auto Ignition |
| BLTA140M | 80 kW | Q+, ADD, QP-24 | 300 | 100 | -150mm~+70mm | Smart Piercing, Auto Recut |
| BLTA160M | 100 kW | Q+, ADD, QP-24 | 300 | 100 | -150mm~+70mm | Smart Piercing, Auto Recut |
| BLTA180M | 120 kW | Q+, ADD, QP-24 | 300 | 100 | -150mm~+70mm | Smart Piercing, Auto Recut |
Tube Cutting Head
BLT3 T / BLT4 T / BLT5 H Series
BOCHU BOCI Tube Cutting Heads are designed for high-efficiency tube processing, covering power ranges from 4kW to 20kW, including the BLT3 T, BLT4 T, and BLT5 H Series. Engineered for precise rotary cutting applications, these cutting heads deliver fast autofocus response, stable clamping coordination, and consistent cutting quality on round, square, and complex tubes. With robust structure and seamless integration with BOCHU control systems, the BOCI tube series ensures reliable performance and high productivity in demanding industrial environments.

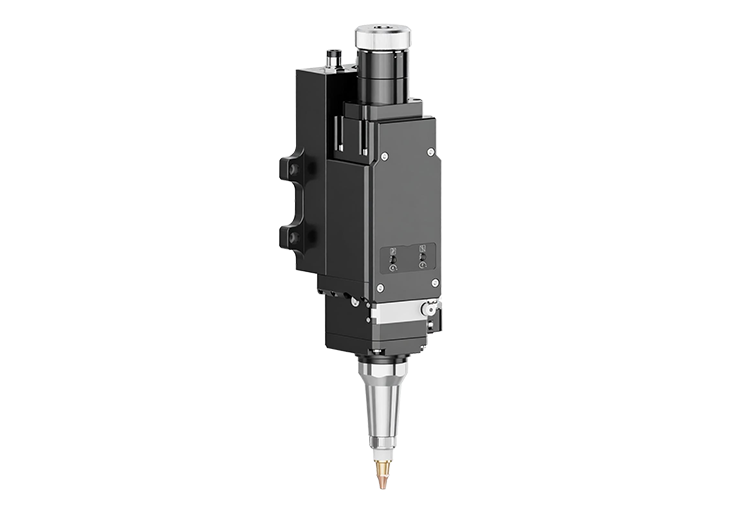

BOCI BLT310T

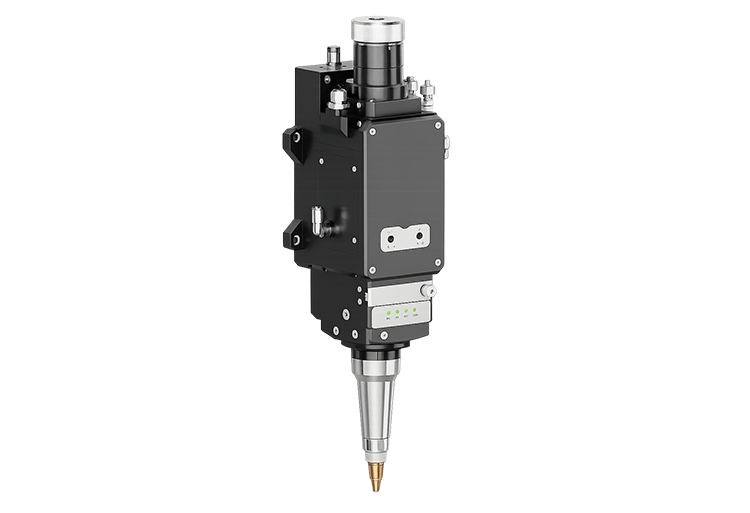

BOCI BLT4 T Series
Product Features
Application Range
Product Specifications
| Model | Power Rating | Fiber Interface | Focal Length (mm) | Collimation Length (mm) | Auto Focus Range (mm) | Remark |
|---|---|---|---|---|---|---|
| BLT310T | 4 kW | QBH, EOC | 150 / 200 / 250 | 100 | -50mm~+50mm | Collision Protection, Built-In Amplifier |
| BLT421TS | 8 kW | QBH, EOC | 200 / 250 | 100 | -50mm~+50mm | Focusing Lens Monitoring, Three-Dimensional Sensing Head |
| BLT442T | 15 kW | Q+, QD, QBH, ADD | 200 / 250 | 100 | -50mm~+50mm | Focusing Lens Monitoring, Three-Dimensional Sensing Head |
| BLT462T | 20 kW | Q+, QD, QBH, ADD | 200 / 250 | 100 | -30mm~+45mm (F200) / -50mm~+45mm (F250) | Focusing Lens Monitoring, Three-Dimensional Sensing Head |
| BLT510 | 4 kW | QBH, EOC | 150 / 200 / 250 | 100 | -20mm~+35mm (F150) / -40mm~+40mm (F200) / -50mm~+50mm (F250) | Full-body Water Cooling, Smart LaserOff |
| BLT520 | 8 kW | QBH, EOC | 200 / 250 | 100 | -50mm~+50mm | Full-body Water Cooling, Smart LaserOff |
| BLT540H | 15 kW | Q+, QD, QBH, ADD | 200 / 250 | 100 | -35mm~+35mm (F200) / -50mm~+50mm (F250) | Full-body Water Cooling, Smart LaserOff |
| BLT560H | 20 kW | Q+, QD, QBH, ADD | 200 / 250 | 100 | -35mm~+35mm (F200) / -50mm~+50mm (F250) | Full-body Water Cooling, Smart LaserOff |
3D Cutting Head
BLT4 P Series
BOCHU BOCI 3D Profile Laser Cutting Heads are engineered for complex multi-dimensional cutting applications, covering power ranges from 15kW to 40kW, including models BLT442P, BLT462P, BLT482P, and BLT4102P. Designed for bevel cutting, curved surfaces, and intricate profiles, these cutting heads offer high dynamic performance, precise focus control, and excellent motion stability. With optimized structure and seamless integration with BOCHU systems, the BOCI 3D series ensures superior cutting accuracy and efficiency in advanced metal fabrication industries.

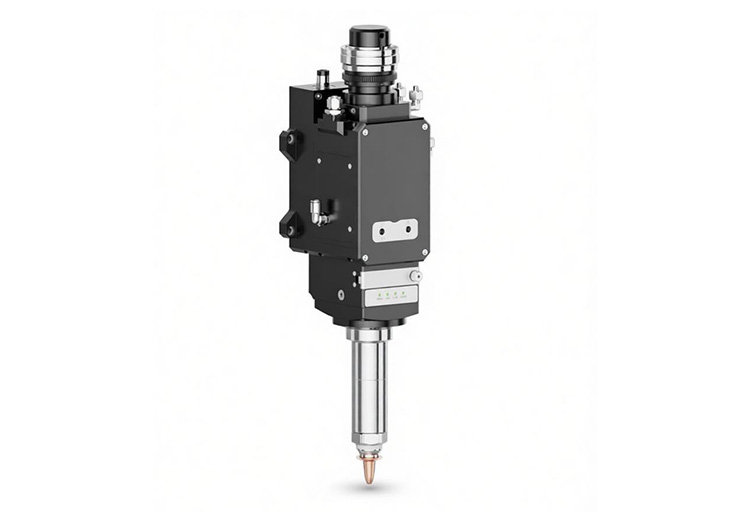

BOCI BLT4 P Series
Product Features
Application Range
Product Specifications
| Model | Power Rating | Fiber Interface | Focal Length (mm) | Collimation Length(mm) | Auto Focus Range (mm) | Remark |
|---|---|---|---|---|---|---|
| BLT442P | 15 kW | Q+, QD, QBH, ADD | 250 | 100 | -50mm~+50mm | Bevel Cutting, Smart LaserOff |
| BLT462P | 20 kW | Q+, QD, QBH, ADD | 250 | 100 | -50mm~+50mm | Bevel Cutting, Smart LaserOff |
| BLT482P | 30 kW | Q+, ADD | 250 / 300 | 100 | -50mm~+50mm (F250) / -130mm~+80mm (F300) | Bevel Cutting, Smart LaserOff |
| BLT4102P | 40 kW | Q+, ADD | 300 | 100 | -130mm~+80mm | Bevel Cutting, Smart LaserOff |
