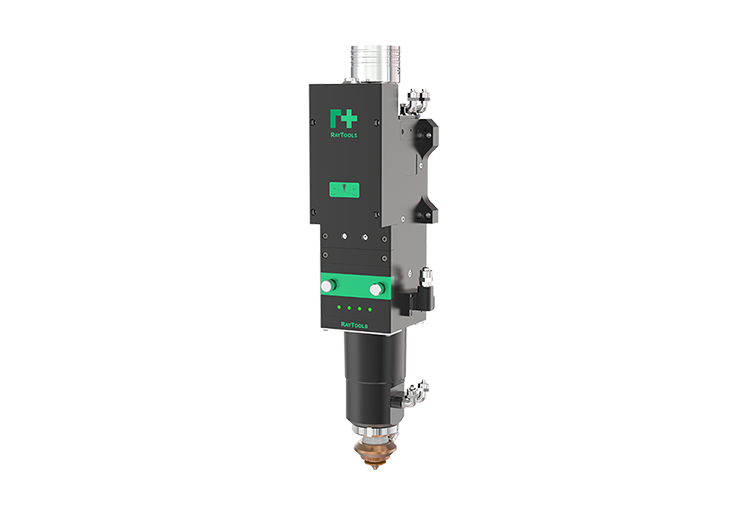

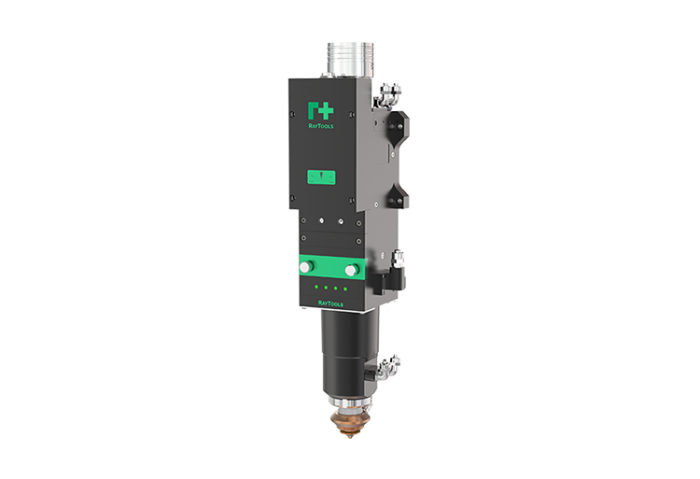

RayTools BS20K 20kW Smart Laser Cutting Head
The BS20K is a high-power cutting head with a power rating of 20kW, available with either non-bus or ECAT bus control options. This product is equipped with multiple fiber interfaces, including QBH, QD, Q+, and LOE, making it compatible with various mainstream lasers. It features built-in intelligent sensors that allow real-time monitoring data to be read on mobile terminals and CNC systems via wireless networks.
Product Details
Lightweight design, improve the acceleration of the machine; eliminate the traditional air cooling of the nozzle (without air compressor), the use of smooth and high-speed airflow design, lens optical shaping and advanced water-cooled structure of the nozzle, which significantly improves the stability, surface quality and efficiency in the process of cutting steel plates.

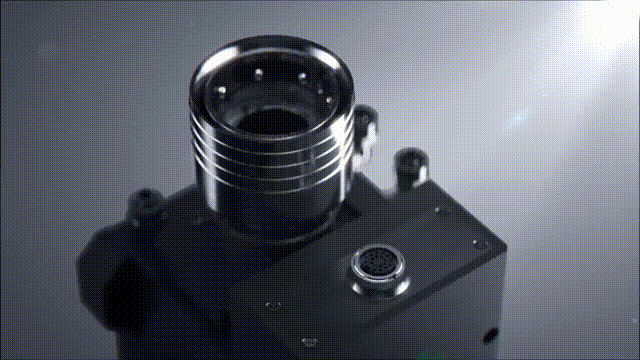

Equipped with fiber interfaces such as QBH, QD, Q+, and LOE, it is compatible with various mainstream lasers.

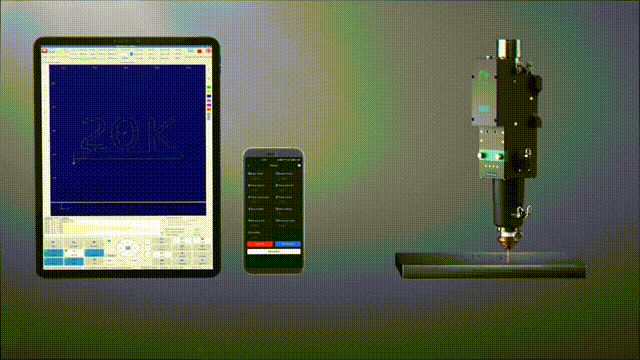

Monitoring data can be read on mobile terminals and CNC systems via wireless networks.

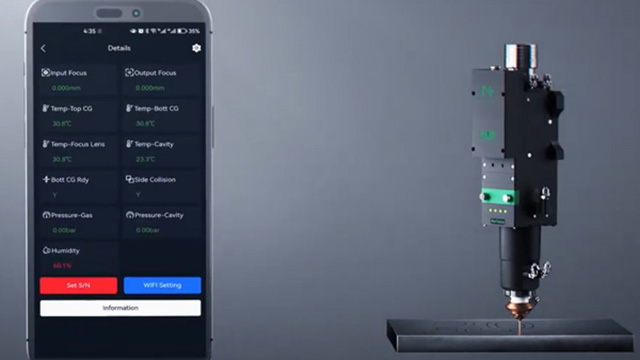

Various built-in sensors provide real-time feedback on parameters such as the temperature of the internal protective lens, focusing lens temperature, chamber humidity and temperature, internal chamber pressure, and cutting gas pressure during the processing.
Technical Data
| Model | Raytools BS20K |
|---|---|
| Fiber Interface | QBH, LOE, QD, Q+ |
| Fiber Wavelength | 1080nm |
| Laser Power | 20kW |
| NA | 0.14 |
| Auto Focus Range (- level) | -1.5 ~ +1.5mm |
| Auto Focus Range (- vertical) | -72 … +72mm |
| Collimating Focal Length | F100 |
| Focusing Focal Length | F300 |
| Cooling Water | Φ8, max. 5bar, min. 1.5 L/min |
| Cutting Gas | Φ12, max. 25bar |
| Operating Voltage | 24V±10%, max. 4A |
| I/O Interface (19-pin) | max. 30mA |
| Laser Cutting Head Weight | 8.3KG-8.7KG |
| Install – Backplane Mounting Hole Screw Quantity / Size | 4xM6 |
| Install – Amplifier Mounting Hole Screw Quantity / Size | 4xM3 |
Product Dimensions
