Raytools BS12K 0-12KW Fiber Laser Cutting Head

Raytools BS12K

RayTools BS12K is a high-power cutting head with a power rating of 12 kW, available in either non-bus or ECAT bus control modes. The product features multiple fiber interfaces including QBH, QD, Q+, LOE, etc., allowing compatibility with various mainstream lasers. It incorporates various intelligent sensors, and through wireless networking, real-time monitoring data can be accessed on mobile terminals and CNC systems.

Product Features

  • Fully integrated smart sensor technology enables real-time status monitoring via APP or CNC.

  • Communication and control are based on EtherCAT.

  • 4-color LED lamps are employed to monitor interior status.

  • Continuous monitoring of optical lens and cover glass is ensured.

  • Gas pressure detection is implemented for enhanced functionality.

Technical Data

Model Raytools BS12K
Fiber Interface QBH, LOE, QD, Q+
Fiber Wavelength 1080nm
Laser Power 12kW
NA 0.14
Auto Focus Range (- level) -1.5 ~ +1.5mm
Auto Focus Range (- vertical) -40+40mm
Collimating Focal Length F100
Focusing Focal Length F200
Cooling Water Φ8, max. 5bar, min. 1.5 L/min
Cutting Gas Φ10, max. 25bar
Operating Voltage 24V±10%, max. 4A
I/O Interface (19-pin) max. 30mA
Laser Cutting Head Weight 8.3KG-8.7KG
Install – Backplane Mounting Hole Screw Quantity / Size 4xM6
Install – Amplifier Mounting Hole Screw Quantity / Size 4xM3

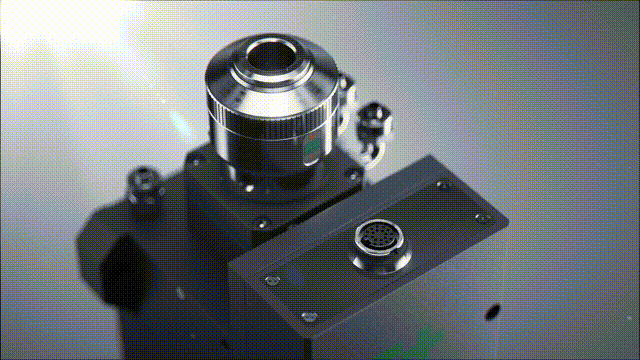

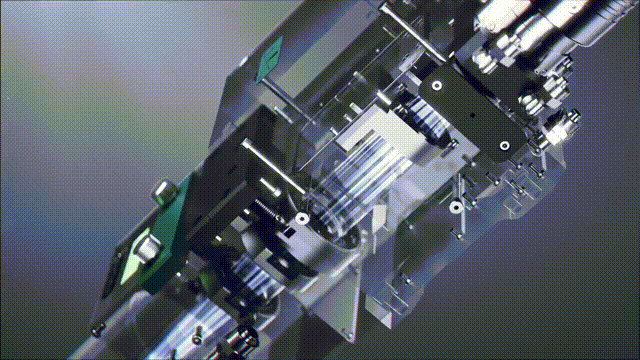

Product Details

Product Dimensions
