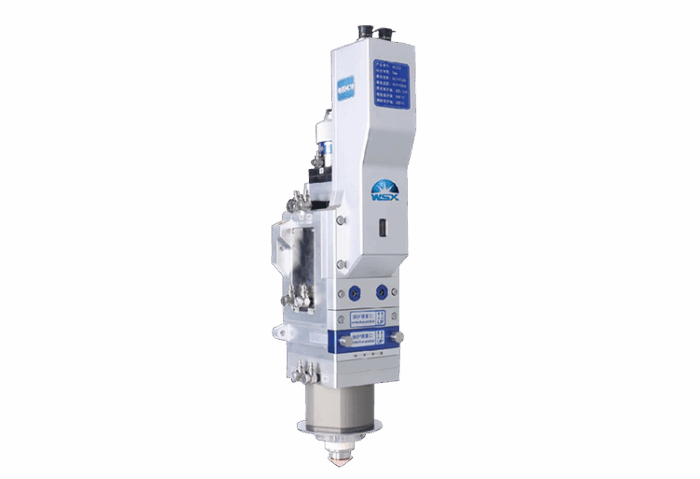

WSX NC150 0-15kW Auto Focus Fiber Laser Cutting Head

WSX NC150

The WSX NC150 15kW Auto-Focusing Fiber Laser Cutting Head is ideal for medium and thick plate cutting. It delivers fast and precise results thanks to its advanced focusing system and high-speed servo motor control. The cutting head is equipped with real-time condition monitoring, tracking temperature, humidity, and air pressure to ensure safe and stable operation. Its efficient cooling system and sealed internal structure prevent overheating and protect the optical lens, extending its service life. With an optimized optical and airflow design, the NC150 significantly enhances cutting efficiency and quality, making it a dependable solution for high-precision laser cutting applications.

Send Request

Product Features

Rapid Focusing: Equipped with a precise focusing mechanism and a high-speed servo motor control system to ensure faster, more efficient perforation and reduced processing time.
Real-Time Condition Monitoring: Integrated sensors for temperature, humidity, air pressure, and other parameters enable real-time monitoring of the cutting head’s status. Abnormalities trigger alarms promptly, ensuring safe and stable operation.
Superior Cooling Efficiency: Dual cooling systems—cavity water cooling and air cooling—effectively prevent temperature-related issues during cutting, ensuring consistent performance and reliability.
Exceptional Sealing: The highly sealed internal structure shields optical lenses from environmental contaminants, prolonging lens lifespan and preserving cutting accuracy.
Optimized Optical & Airflow Design: A stable optical layout combined with a well-balanced airflow structure significantly improves cutting efficiency and overall quality.

Technical Data

Model	WSX NC150
Applicable Power	≤15000W
Fiber Interface	QBH, QD, Q+, LOE
Max Gas Pressure	25Bar
Collimating Focal Length	F100
Focusing Focal Length	F200
Horizontal Adjustment Range	±1.5mm
Vertical Adjustment Range	±30mm
Effective Aperture	32mm
Gross Weight	8.5kg
