Raytools BS03K-CAT

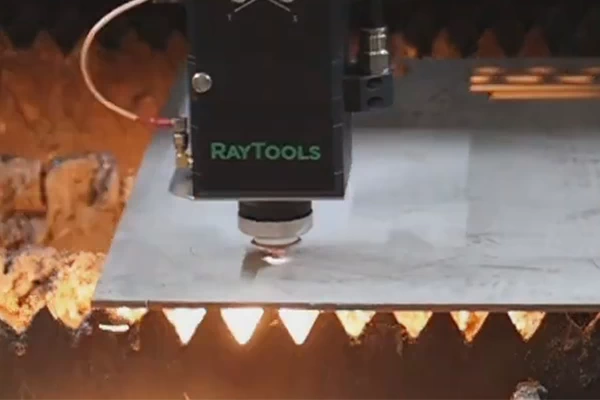

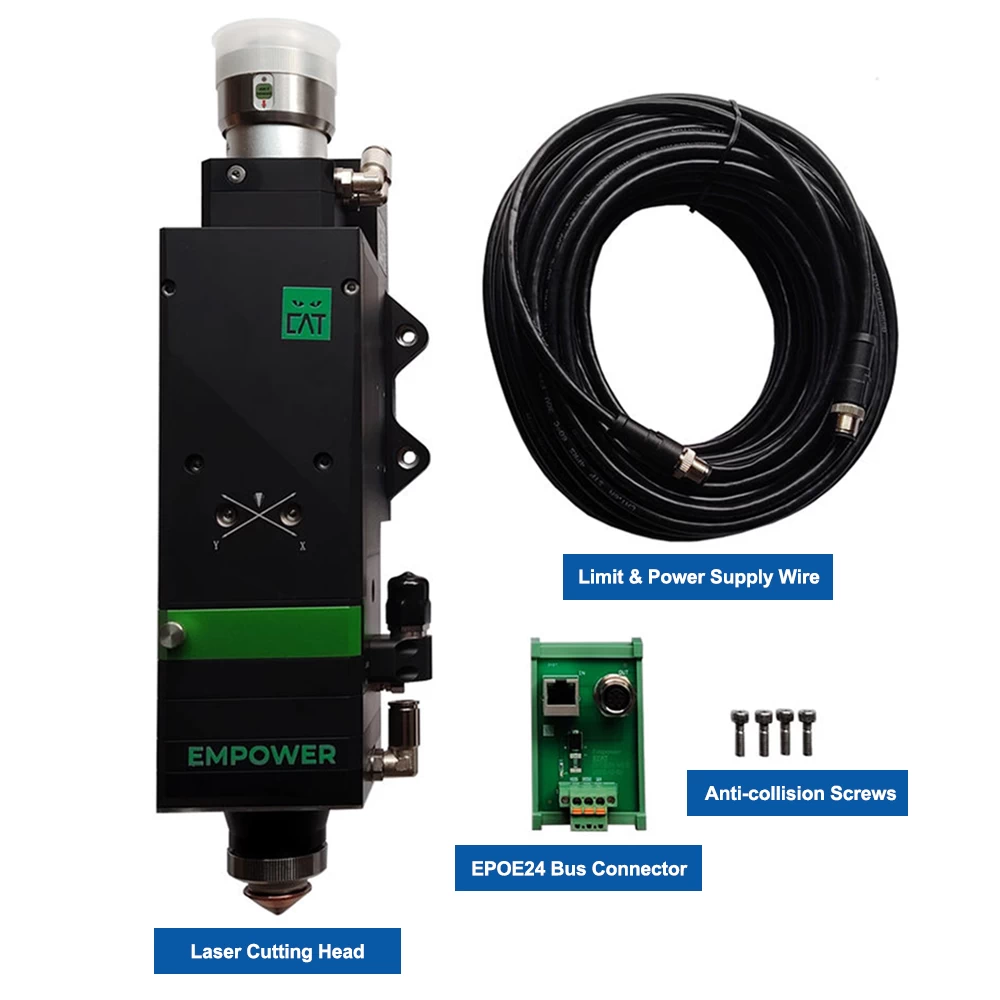

The RayTools BS03K-CAT series is a medium to low-power laser cutting head designed for applications up to 3kW. It features a QBH fiber interface, ensuring compatibility with a wide range of mainstream laser sources. Equipped with EtherCAT bus communication and a bus-controlled focusing unit, this cutting head enables continuous and rapid focus adjustments through programmable settings, enhancing cutting efficiency and precision.

Product Features

  • Dual Optical Protection: Equipped with three sets of protective lenses to extend the service life of the core lenses. The multi-layer protection structure enhances the sealing level of the internal cavity.

  • Optimized Optical Design: Significantly improves air cutting speed and performance, achieving a 10%–40% increase compared to conventional cutting heads.

  • Optimized Mechanical and Cooling Design: Simplified lens installation reduces maintenance effort and cost. The anti-collision structure lowers damage risks from mishandling. Anti-corrosion treatment prevents coolant leakage caused by long-term use.

  • High-Efficiency Cooling: Precise gas control ensures stable cut quality. Features include anti-contamination design, one-touch air pressure calibration, easy nozzle replacement, and real-time protective lens temperature monitoring to reduce cutting defects.

  • Collimation and Focusing: Faster focusing speed with a wider adjustment range, enabling more efficient piercing and supporting full-power carbon steel cutting with small nozzles.

  • Built-in Capacitive Amplifier: Available with an optional built-in capacitive amplifier to achieve more precise and stable height following.

Technical Data

Model Raytools BS03K-CAT
Fiber Interface QBH
Fiber Wavelength 1080nm
Laser Power 3kW
NA 0.13
Collimating Focal Length F100
Focusing Focal Length F150
Auto Focus Range (- level) -1.5 ~ +1.5mm
Auto Focus Range (- vertical) -22~ +22mm
Cooling Water Φ6, max. 5bar, min. 1.5L/min
Cutting Gas Φ10, max. 25bar
Cooling Gas Φ8, max. 5bar
Operating Voltage 24V±10%, max. 4A
I/O Interface (19-pin) max. 30mA
Laser Cutting Head Weight 7KG
Install – Backplane Mounting Hole Screw Quantity / Size 4xM6
Install – Amplifier Mounting Hole Screw Quantity / Size 4xM3

Product Dimensions
