BOCI Laser Cutting Nozzles D28 M11 H15

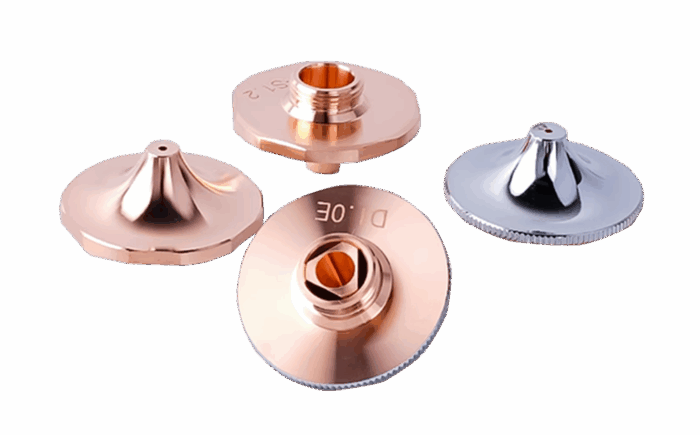

BOCI laser nozzles with M11×0.75 thread are available in two types: E-type (double-layer high-speed) and SP-type (single-layer high-speed). These nozzles have a diameter of 28mm and a height of 15mm, and are suitable for a wide range of BOCI laser cutting heads, including BLT421, BLT441, BLT461, BLT481, BLT641, BLT661, BLT641H, BLT661H, BLT681H, and others.
Product Specifications
| Type | Model | Caliber (mm) | Outer Diameter (mm) | Height (mm) | Thread Type | Material Code |
|---|---|---|---|---|---|---|
| Single Layer | SP-S1.0 | 1.0 | 28 | 15 | M11*0.75 | Y.Z.E0031 |
| Single Layer | SP-S1.2 | 1.2 | 28 | 15 | M11*0.75 | Y.Z.E0032 |
| Single Layer | SP-S1.4 | 1.4 | 28 | 15 | M11*0.75 | Y.Z.E0008 |
| Single Layer | SP-S1.6 | 1.6 | 28 | 15 | M11*0.75 | Y.Z.E0009 |
| Single Layer | SP-S1.8 | 1.8 | 28 | 15 | M11*0.75 | Y.Z.E0011 |
| Double Layer | D1.0E | 1.0 | 28 | 15 | M11*0.75 | Y.Z.E0033 |
| Double Layer | D1.2E | 1.2 | 28 | 15 | M11*0.75 | Y.Z.E0004 |
| Double Layer | D1.4E | 1.4 | 28 | 15 | M11*0.75 | Y.Z.E0005 |
| Double Layer | D1.6E | 1.6 | 28 | 15 | M11*0.75 | Y.Z.E0006 |
| Double Layer | D1.8E | 1.8 | 28 | 15 | M11*0.75 | Y.Z.E0007 |

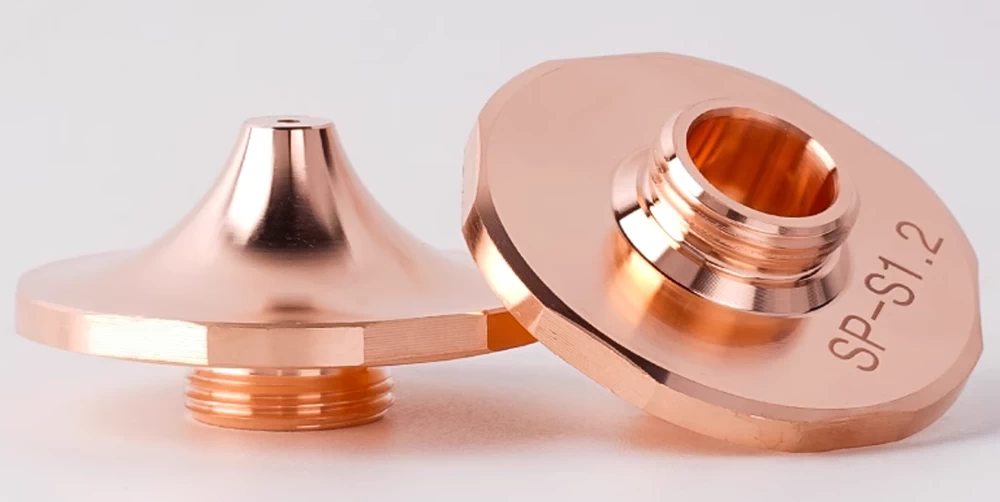

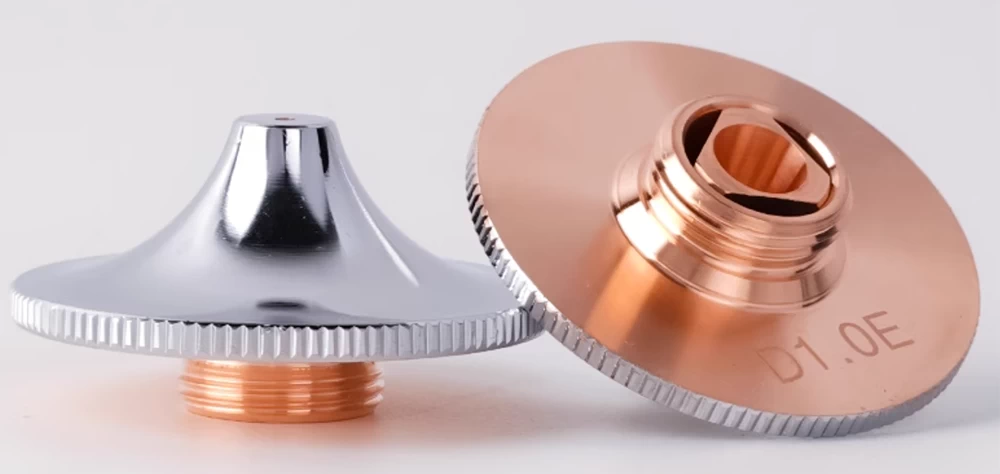

Prouduct Details

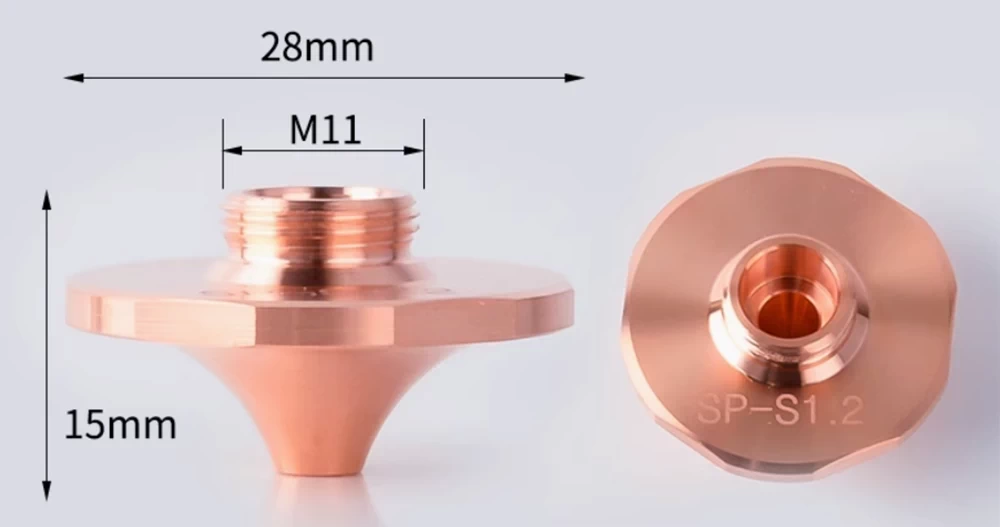

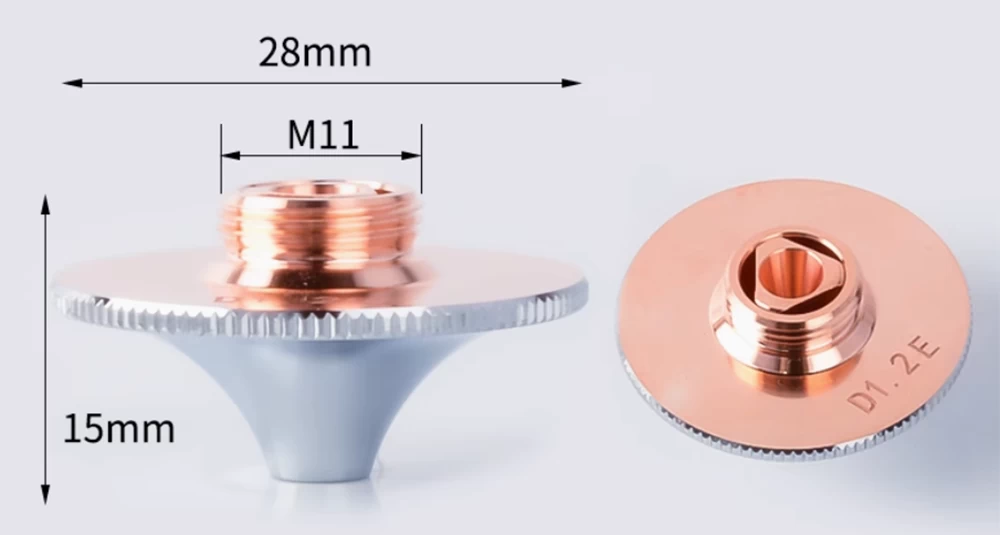

Product Dimensions
