For Laser Cutting Machines

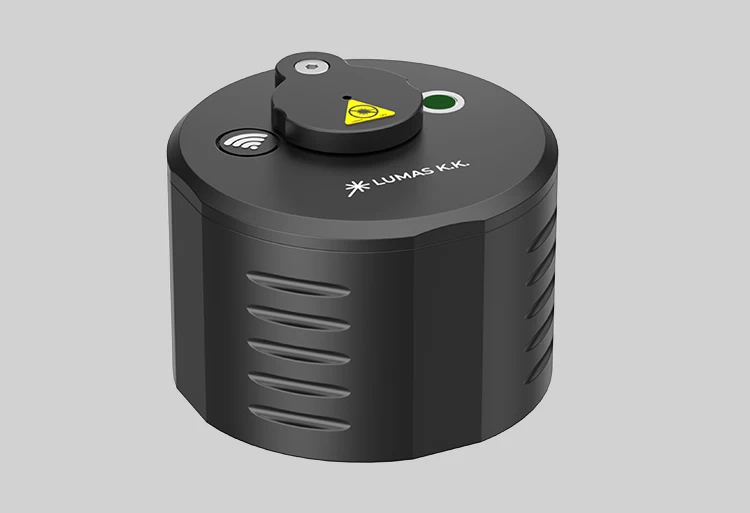

NVA (Nozzle Visual Aligner)

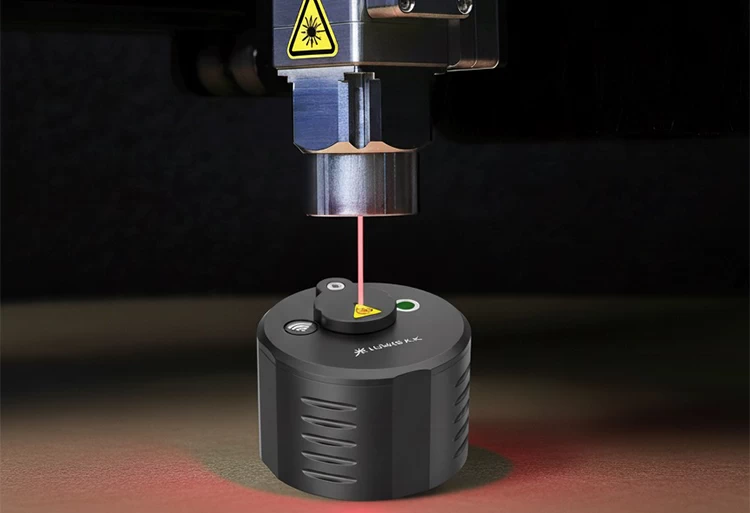

The NVA (Nozzle Visual Aligner) revolutionizes the way nozzle alignment is performed in laser cutting systems. With its advanced visual alignment technology, it delivers exceptional precision and consistency, reducing operator-dependent variations. This ensures that every cutting operation maintains the highest level of accuracy, directly improving production quality and efficiency.
Designed for simplicity, the NVA makes nozzle alignment accessible to everyone. Through just three easy steps, even operators with minimal experience can complete the alignment process quickly and accurately. This intuitive design shortens setup time and minimizes reliance on skilled labor, allowing production to start faster and run more smoothly.
In addition to its precision and ease of use, the NVA prioritizes safety and reliability. The system ensures zero laser leakage during alignment, protecting operators and maintaining a secure work environment. With improved alignment comes better part quality, fewer defects, and ultimately higher profitability — making the NVA a true game changer for modern laser cutting operations.
Product Features
Technical Data
| Product | Nozzle Visual Aligner (NVA) |
|---|---|
| Coaxial Deviation | < 0.08mm |
| Compatible Nozzle Specifications | 1.0mm – 3.0mm |
| Weight | 621g (Battery included) |
| Dimensions | 77mm(Height) ×105 mm(Diameter) |
| Power Supply Type | External Power Supply or Built-in 14500 Battery |
| Operating Mode | Automatic Judgment Mode (Auto) or Manual Judgment Mode (Mid) |
| Operating Temperature | 0℃ – 60℃ |
| Wi-Fi Specifications | 5 GHz Wi-Fi |
| Package Contents | Laser Nozzle Visual Aligner ×1, Type-C Data Cable ×1 Quality Inspection Label ×1, User Quick Guide ×1 |
| Built-in Battery Specification | Battery Type: 14500 Pointed-Head Rechargeable Lithium or NiMH Battery Quantity: 2 Output Voltage/Current: 3.7V per 14500 cell, Current ≥ 0.6A Battery Capacity: ≥ 1000mAh per cell Dimensions: Diameter 14mm, Height 50mm |
| External Power Supply Specification | Power Adapter: Output Voltage ≥ 5V, Current ≥ 2A Power Bank: Output Voltage ≥ 5V, Current ≥ 2A |

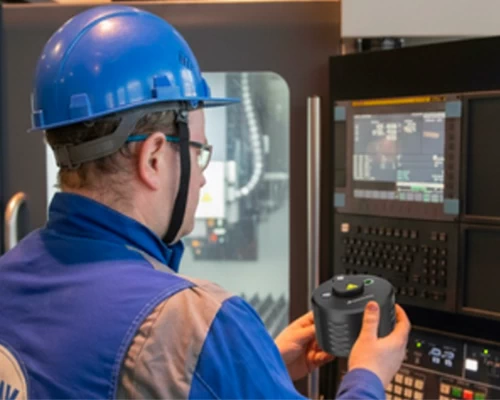

Product Advantages

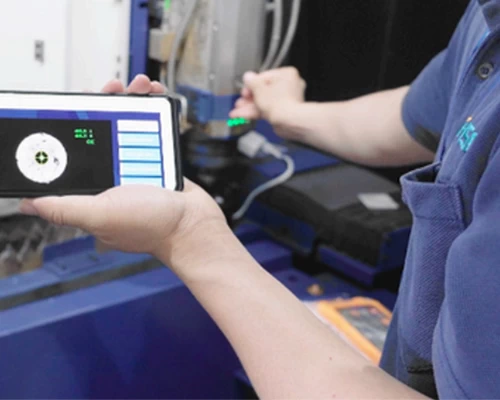

Enhanced Production Precision
Reduced Operator Skill Requirements
Shorter Setup Time
Enhanced Safety, Zero Laser Leak
