900 – 1070nm, OD6+, OD7+ …

Laser Safety Windows

Laser Safety Windows are designed for integration into machine housings, cabins, and large-area laser protection systems such as panel barriers. In compliance with DIN EN 60825-1:2008 and EU Machinery Directive 2006/42/EC, these windows are classified as safety components, ensuring that accessible laser radiation remains below the maximum permissible exposure (MPE) for eyes and skin under all foreseeable operating conditions.

Important Specifications

Model Protection Wavelength Photo Standard Size Thickness Transmittance Optical Density LB-Rating Application
LP-YLW 930-1100nm 1000*1200mm, could be customized 5mm 23% 930-1050nm OD>6
1050-1090nm OD>7
930-1050nm D AB6 + IR AB7
1050-1100nm D AB5+IR AB7
Fiber laser
LP-YLW6 900 – 1070nm 1000*1200mm, could be customized 5mm 40% 900 – 1070nm OD>6 900 – 1070nm DIR AB6 Fiber Laser

800 – 1100nm, OD6+, OD7+ …

Laser Safety Glasses

Even at lower power output levels, a single accidental exposure to a direct or reflected laser beam can cause irreversible ocular injury, depending on the wavelength, power, and exposure duration. This is why laser safety is crucial. In addition to protecting the eyes, laser safety also helps prevent damage to equipment. Irradiance, which is the power per unit area expressed in watts/cm², is critical in determining the potential for harm.

Yupec offers a range of laser safety glasses designed to reduce the risk of accidents or injuries. When wearing laser safety glasses, certain wavelengths of the spectrum that would normally reach our eyes are filtered out. Blocking light from the visible spectrum alters our perception of the environment.

Important Specifications

Model Protection Wavelength Photo Typical For Transmittance Optical Density LB-Rating Application

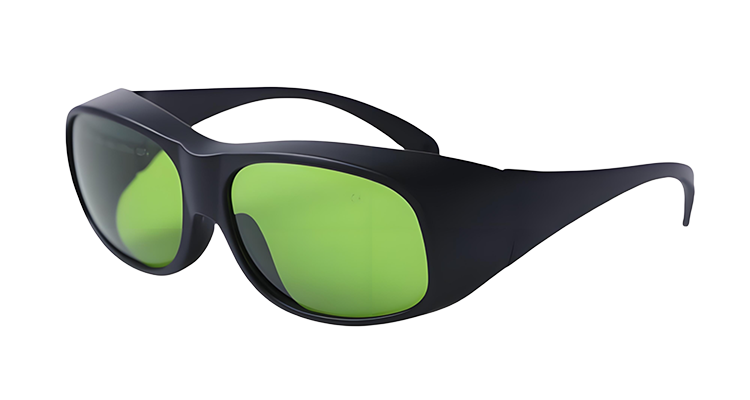

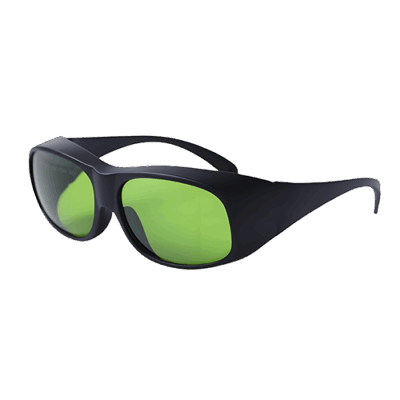

LP-YHP-2 800-1100nm 808nm, 980nm, 1064nm, etc. 41% 800-900nm OD>6
900-1100nm OD>7
800-900nm D LB5 + IR LB6
900 – 1080nm D LB5 + IR LB7  LP S CE
Dental lasers, Diodes, ND: YAG, Fiber laser
LP-ADY-3 900-1100nm 980nm, 1064nm etc. 6% 900-1100nm OD8+ DIN4 900-1100nm D LB6 + IR LB7 LP S CE High Power Fiber Laser

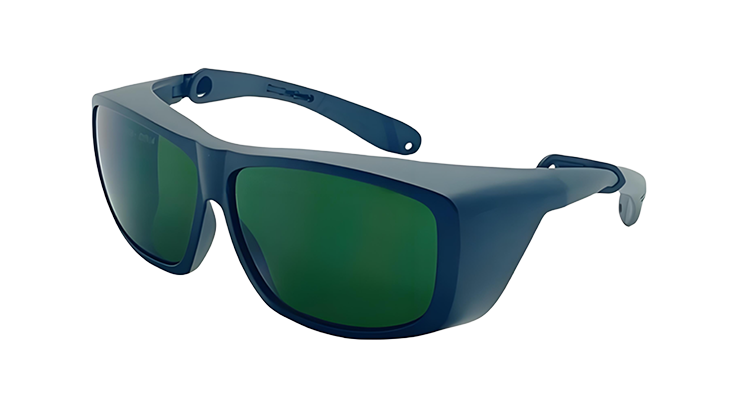

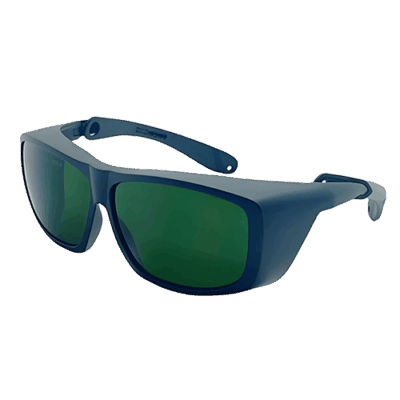

LP-RTD-5 200-450nm
630-660nm
800-1100nm
450nm, 650nm, 808nm, 980nm etc. 18% 200-450nm OD4+
630-660nm OD4+
800-1100nm OD6+
316-440nm D LB5+IR LB6
440-450nm DIR LB4
630-660nm DIR LB4
800-1080nm DIR LB6
Blue lasers, Red lasers, 808&980nm Diodes

950 – 1100nm, OD6+, OD7+ …

Laser Protection Helmets

Handheld laser welding operations expose operators to intense laser radiation, strong reflections from metal surfaces, and high-temperature welding splashes. Due to the close working distance, the face and head are particularly vulnerable to accidental exposure from reflected beams and secondary radiation. Without proper protection, even brief incidents can lead to serious injuries, making dedicated protective equipment essential for safe handheld laser welding.

Yupec laser protection helmets are specifically designed for handheld laser welding applications. The helmet integrates a laser-protective viewing window with a full-face and head coverage structure, effectively reducing exposure to hazardous wavelengths commonly used in welding lasers. At the same time, it provides protection against sparks, molten metal, and heat generated during welding, allowing operators to work safely and confidently while maintaining good visibility and comfort during prolonged use.

Important Specifications

Model Protection Wavelength Photo Transmittance Optical Density LB-Rating
LP-YL-HM B7 950-1100nm 8% 950-1100nm OD7+
950-1100nm OD7+DIN4
950-1100nm DLB6+IR LB7
LP-YL-HM B8 950-1100nm 6% 950-1100nm OD8+
950-1100nm OD8+DIN4
950-1100nm DLB7+IR LB8

Yupec Laser is a leading provider of advanced fiber laser solutions in Europe, specializing in the sales, technical support, and service of Raycus fiber lasers.

With years of experience and a team of industry experts, we will be happy to help you with all your laser and laser application needs.

For more information about our products and services, please feel free to get in touch with us. We look forward to collaborating with you and driving innovation together.
